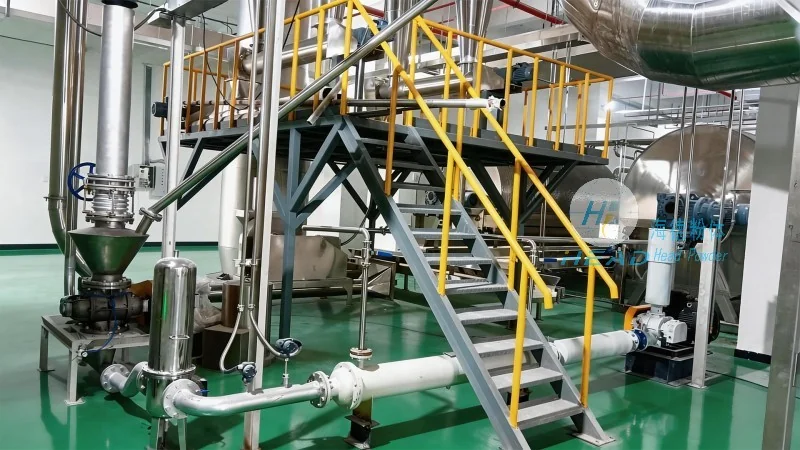

Bamboo Powder Conveying: Pneumatic Conveying Intro

In the rapidly evolving landscape of industrial material handling, the efficient movement of fine, lightweight, yet abrasive powders has become a critical challenge for manufacturers across sectors ranging from bioenergy to composite materials. Among these materials, bamboo powder—a byproduct of bamboo processing and a valuable feedstock for pellets, activated carbon, and biodegradable composites—presents unique conveying difficulties due to its fibrous nature, low bulk density, and tendency to bridge or clog. Pneumatic conveying has emerged as the preferred solution for transporting bamboo powder safely and continuously. Drawing on years of application engineering at headpowder, this article provides a comprehensive introduction to pneumatic conveying systems tailored for bamboo powder, covering fundamental principles, system configurations, key components, selection criteria, and real-world performance considerations. Whether you are planning a new processing line or upgrading an existing one, understanding the nuances of pneumatic technology for bamboo powder will help you achieve higher throughput, lower energy consumption, and reduced maintenance downtime.

Understanding Bamboo Powder: Physical Properties That Drive Conveying Design

Bamboo powder is not a homogeneous material. Its characteristics vary significantly based on the source plant species, the grinding method, moisture content, and particle size distribution. Typical bamboo powder particles range from 20 mesh (approximately 850 microns) down to 200 mesh (74 microns) or finer. The bulk density of loose bamboo powder is usually between 100 and 250 kg/m³, which classifies it as a low-density bulk solid. When compacted or aerated, the density can change rapidly, leading to erratic flow behavior. Additionally, bamboo powder contains natural silica and lignin, making it mildly abrasive. Moisture content in air-dried bamboo powder commonly falls between 8% and 12%, but during rainy seasons or improper storage, it can exceed 18%, drastically altering flowability and increasing the risk of sticking. These physical properties directly influence the choice of pneumatic conveying mode, air velocity, and system components.

Fundamentals of Pneumatic Conveying: Dilute Phase vs. Dense Phase

Pneumatic conveying uses a gas stream—typically air—to move particulate solids through a pipeline. Two primary regimes are relevant for bamboo powder: dilute phase and dense phase. In dilute phase conveying, particles are suspended in the air stream at relatively high velocities (typically 15–30 m/s) and low solids-to-air ratios. This method works well for fine, non-abrasive, or friable materials, but for bamboo powder, the high velocity can cause excessive pipe wear, particle degradation, and energy waste. Dense phase conveying, on the other hand, moves the powder in a non-suspended, pulsating or continuous slug flow at lower velocities (3–10 m/s) and higher solids loading. Dense phase is far gentler on the powder and the pipeline, reducing attrition and extending equipment life. However, bamboo powder’s low permeability and high compressibility often require dedicated air injection systems (such as bypass or boosters) to maintain stable dense phase flow. In practice, many bamboo powder applications adopt a medium-velocity, low-pressure dilute phase system with wear-resistant pipes or a modified dense phase setup with pulsed air injection. headpowder has developed proprietary nozzle configurations that allow dense phase conveying of bamboo powder with moisture content up to 15% without bridging.

Core Components of a Bamboo Powder Pneumatic Conveying System

Every pneumatic conveying line for bamboo powder consists of several essential modules, each requiring careful selection to match material characteristics.

• Feed Device: The method of introducing bamboo powder into the pipeline is critical. Rotary airlocks (star valves) are most common, but for cohesive or fibrous powders, a live-bottom feeder or a screw feeder with controlled bridging may be necessary. headpowder offers a low-torque rotary valve with tungsten carbide tipped vanes to handle the abrasive nature of bamboo while preventing blow-by.
• Air Source: Blowers or compressors provide the motive force. For dilute phase, a positive displacement (PD) blower with 0.3–0.6 bar pressure is typical. For dense phase, higher pressure (up to 2 bar) screw compressors are used. The air must be filtered and dried to prevent moisture condensation that could cause clumping inside the pipeline.
• Conveying Pipeline: Straight runs should be minimized on long horizontal sections, and bend radii must be generous (recommended at least 6–8 times the pipe diameter) to reduce wear. For bamboo powder, seamless carbon steel with a minimum wall thickness of 5 mm is standard. In sections expected to experience high wear rates, ceramic-lined or basalt-lined pipes are increasingly adopted. headpowder uses a double-walled pipe design with a replaceable inner sleeve, cutting maintenance costs by up to 40%.
• Air-Powder Separation: At the destination, a cyclone separator typically removes 90–95% of the powder, followed by a baghouse filter or cartridge filter for fine dust collection. Explosion venting and spark detection are strongly recommended because bamboo dust has a minimum explosive concentration (MEC) of roughly 60 g/m³ and a Kst value between 80 and 120 bar·m/s, placing it in St-1 to St-2 dust explosion class.
• Controls and Instrumentation: Modern systems employ PLC-based controllers with pressure transmitters, flow meters, and level sensors. Real-time tuning of air velocity and feed rate prevents blockage and optimizes energy consumption.

System Design Parameters and Sizing Considerations

Designing a pneumatic conveying system for bamboo powder requires balancing several parameters. The most influential variables are conveying distance (horizontal lift, number of bends), required capacity (tons per hour), and particle size distribution. For a typical plant conveying bamboo powder over a horizontal distance of 50 m with three 90-degree bends, a dilute phase system might need a pipe diameter of 80–100 mm and an air velocity of 22–26 m/s to reliably suspend the powder. Conversely, a dense phase system for the same distance might use a 65–80 mm pipe with velocities around 6–8 m/s, but would require additional air injection every 8–12 m to break up compressed plugs. Energy consumption for dilute phase runs about 0.5–1.0 kWh per ton per 100 m, while dense phase can reduce that to 0.3–0.6 kWh per ton, but at higher capital cost for compressors and boosters. Industry data from 2026 indicates that roughly 68% of new bamboo powder conveying installations in Southeast Asia now incorporate some form of dense phase or semi-dense phase technology due to rising energy prices and stricter dust emission regulations. It is also important to calculate the saltation velocity—the point at which particles begin to settle out of the airstream. For bamboo powder of 100–150 mesh, saltation velocity is typically 12–16 m/s, so the system must remain above this threshold in dilute phase to avoid line blockages. headpowder provides a free online sizing tool that inputs your bamboo powder’s bulk density and moisture content to recommend optimal pipe diameter and air requirements.

Operational Challenges and Mitigation Strategies

Even with a well-designed system, bamboo powder conveying presents several operational obstacles. The most common issues include bridging at the feeder inlet, line plugging during start-up or after shutdown, and accelerated wear at bends. Bridging can be mitigated by using a mechanical agitator or aeration pads just above the rotary valve. For start-up plugging, a pre-charge air pulse that fluidizes the powder before conveying begins has proven effective. Wear at bends should be expected; inspection schedules of every 500–1,000 operating hours for standard steel bends and every 3,000–5,000 hours for ceramic-lined bends are recommended. Another challenge is static electricity generation. Dry bamboo powder moving through a plastic or non-conductive pipe can build up static charges, causing particle attraction to walls and potential spark ignition. All system components should be grounded, and conductive piping materials must be used. In a recent field installation for a flooring material manufacturer, headpowder engineers solved a recurring static issue by incorporating a passive electrostatic dissipator at the cyclone inlet, reducing dust accumulation on filter bags by 35%.

Safety and Regulatory Compliance for Bamboo Dust Handling

Bamboo dust is classified as a combustible dust under OSHA and ATEX directives. According to NFPA 652 and 664 standards, any facility handling bamboo powder must perform a dust hazard analysis (DHA). Key safety measures include proper grounding and bonding, installing explosion relief panels (with a vent area ratio of at least 1 m² per 6–10 m³ of volume), and using deflagration isolation devices between the conveying line and storage silos. Explosion suppression systems are recommended for indoor installations. headpowder systems are designed with optional integrated suppression and isolation, pre-certified for ATEX Zone 20/21 environments. Additionally, moisture content should be controlled below 14% wherever possible, as higher moisture not only increases explosion severity but also accelerates microbial degradation and caking. Temperature monitoring at the blower discharge and at key pipe sections is also a standard feature in modern bamboo powder handling lines.

Economic and Environmental Benefits of Pneumatic Conveying for Bamboo Powder

Compared to mechanical conveyors (belt, screw, bucket elevator), pneumatic systems offer cleaner operation, lower dust emissions, and greater layout flexibility. For a bamboo powder plant producing 5 tons per hour, the total installed cost of a dilute phase pneumatic system is typically USD 80,000–150,000, while a dense phase system ranges from USD 120,000–200,000. However, the payback period from reduced product loss, lower maintenance, and energy savings often falls between 18 and 30 months. Environmentally, enclosed pneumatic conveying eliminates fugitive dust that can harm worker health and neighboring communities. The ability to route pipes overhead or through existing structures without major civil work also reduces plant footprint. In 2026, advances in variable-frequency drive (VFD) control allow the air supply to be automatically adjusted based on real-time pressure feedback, cutting energy use by up to 25% compared to fixed-speed systems. headpowder’s ECO-Convey series incorporates these VFD controls along with remote monitoring, enabling operators to see system performance on a mobile dashboard and receive proactive maintenance alerts.

Case Study: Optimizing Bamboo Powder Transfer for a Biopellet Manufacturer

A medium-scale biopellet producer in Vietnam faced recurring shutdowns due to blockages in their existing screw conveyor system when handling bamboo powder with 13% moisture. The blockage caused 8 hours of downtime monthly and required manual cleaning. After evaluating alternatives, they selected a headpowder dense phase system with a 76 mm pipe, a 30 kW screw compressor, and pulsed air injection at 10 m intervals. The system was designed for a capacity of 3 t/h over a 45 m distance with four bends. After commissioning, the client reported zero blockages in the first six months, a 20% reduction in energy cost per ton compared to their previous pneumatic system, and filter bag life extended by 60%. The return on investment was achieved in 14 months. This example illustrates how proper system matching to material properties transforms production reliability.

Selecting the Right Partner for Your Bamboo Powder Conveying Project

Choosing an experienced engineering provider is as important as choosing the correct technology. Look for a supplier with proven track record in handling fibrous, low-density materials, and one that offers comprehensive testing services—ideally pilot conveying trials with your actual bamboo powder. headpowder operates a full-scale test facility in-house where clients can send 200 kg samples for a complete conveying analysis. The test report includes pressure drop data, optimal air velocity, wear rate predictions, and explosion risk classification. Field support during installation and commissioning, as well as after-sales training for plant operators, should be included in the scope. A reputable provider will also supply detailed documentation for DHA compliance and local regulatory submissions. When evaluating proposals, pay close attention to the total cost of ownership—including spare parts availability, typical replacement intervals, and energy consumption per ton—rather than just the initial purchase price. headpowder offers a comprehensive five-year warranty on key components for bamboo powder systems, reflecting confidence in the durability of its engineering. For a customized proposal or to schedule a material test, reach out to the team. (咨询热线：156-6277-7102)

Future Trends in Bamboo Powder Pneumatic Conveying

As the global bamboo processing industry expands—driven by demand for sustainable alternatives to wood and plastics—the need for efficient bulk material handling will intensify. Key trends to watch include the integration of IoT sensors for predictive maintenance, digital twin simulations for optimizing pipe layouts before installation, and the use of hybrid systems that combine dilute and dense phase modes within a single line to handle variable particle sizes. Additionally, advances in pipe lining materials, such as polyurethane-coated aluminum or ultra-high molecular weight polyethylene (UHMW-PE), are making pneumatic conveying even more cost-effective for abrasive powders. By staying informed about these developments and working with a knowledgeable engineering partner like headpowder, companies can future-proof their powder handling operations, ensuring consistent quality and sustainable growth for years to come.
