Fine Powder Conveying: Pneumatic Conveying Guide

Understanding the Fundamentals of Fine Powder Conveying

Fine powder conveying is a critical operation in many industrial sectors, including pharmaceuticals, chemicals, food processing, ceramics, and advanced materials manufacturing. The behavior of fine powders—typically defined as particles smaller than 100 microns—differs significantly from that of granular or bulk solids due to their high surface area, low bulk density, and strong interparticle forces such as van der Waals, electrostatic, and capillary adhesion. These characteristics make fine powders prone to issues like bridging, rat-holing, agglomeration, and uncontrollable dust generation during transport. Pneumatic conveying has emerged as the preferred solution for handling fine powders because it offers enclosed, flexible, and automated material transfer with minimal contamination risk. However, designing an efficient pneumatic conveying system for fine powders requires deep understanding of flow regimes, pressure drops, air velocity profiles, and material degradation thresholds. In this guide, we explore the engineering principles, system configurations, and operational best practices for fine powder pneumatic conveying, drawing on decades of field experience and recent advancements in 2026 industry standards. Whether you are upgrading an existing line or designing a new facility, the insights provided here will help you achieve consistent throughput, reduced energy consumption, and longer equipment life.

Why Pneumatic Conveying Is the Default Choice for Fine Powders

For fine powders, mechanical conveyors such as screw conveyors, belt conveyors, or bucket elevators often present severe limitations. Dust leakage, product degradation due to mechanical shear, and difficulty in cleaning between product changeovers are common drawbacks. Pneumatic conveying overcomes these challenges by using air or inert gas as the conveying medium, transporting material through closed piping networks. The ability to route pipes around existing structures, vertically lift material, and distribute to multiple destinations makes pneumatic systems highly adaptable. Moreover, the enclosed nature prevents moisture ingress and environmental contamination, which is increasingly important for industries subject to strict hygiene regulations (e.g., FDA, EU GMP). With the global market for pneumatic conveying systems projected to exceed USD 12 billion by 2026, driven by demand for automation in fine chemical and battery material production, investing in a well-designed system is a strategic decision. headpowder has been at the forefront of this field, delivering customized solutions for over a decade. To explore how your specific powder characteristics influence system design, contact our engineering team (咨询热线：156-6277-7102).

Key Flow Regimes in Fine Powder Pneumatic Conveying

Understanding the flow regime is the first step in selecting the appropriate conveying mode. Fine powders can be transported in dilute phase, dense phase, or strand flow, each with distinct advantages and constraints.

• Dilute Phase Conveying: In this regime, particles are fully suspended in the air stream at high velocities (typically 15–30 m/s for fine powders). It is suitable for short distances and materials that are not highly abrasive. However, high velocity can cause particle attrition and pipe erosion. For cohesive fine powders such as talc or titanium dioxide, dilute phase may lead to blockages due to electrostatic charging.
• Dense Phase Conveying: Here, material moves as a moving bed or slug at lower air velocities (3–8 m/s). This regime minimizes degradation and wear, making it ideal for fragile or abrasive fine powders like alumina or lithium carbonate. Dense phase requires higher air pressure (up to 1–3 bar) and careful control of material permeability. For powders with poor air retention, a fluidized dense phase system may be necessary.
• Strand Flow: An intermediate regime where material moves in continuous strands along the bottom of the pipe. This is less common for fine powders but can occur at transitional velocities. Understanding the Geldart classification of your powder—Group A (aeratable), Group C (cohesive), or Group B (bubbling)—guides the regime selection.

Empirical data from 2025–2026 test campaigns show that for Group C fine powders (e.g., cornstarch, carbon black), dense phase conveying with a bypass valve system reduces energy consumption by as much as 35% compared to dilute phase. Proper regime selection also directly impacts filter loading at the receiving vessel, a factor often overlooked.

System Components and Their Critical Role in Performance

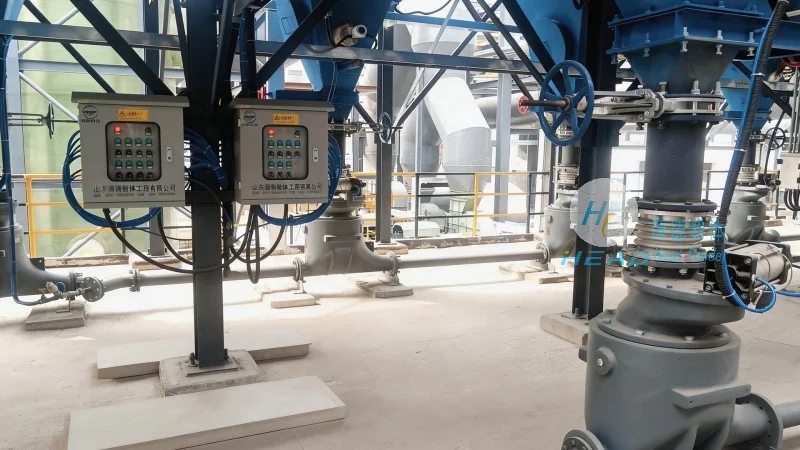

A pneumatic conveying system for fine powders comprises several key components, each requiring careful specification. The blower or compressor must deliver consistent airflow at the required pressure. For fine powders, rotary lobe blowers are common for dilute phase, while screw compressors are preferred for dense phase due to higher pressure capability. The feeding device—typically a rotary airlock, venturi injector, or pressure vessel—must prevent air leakage back into the hopper while metering powder accurately. For cohesive powders, a positive displacement feeder with a vibrated hopper can improve flow consistency.

Pipeline design is equally critical. Minimum conveying velocity must be maintained to avoid saltation, but excessive velocity leads to particle breakage. For fine powders, the saltation velocity is often 50–80% higher than for coarse materials of the same density. Pipe bends are major wear points; long-radius bends with ceramic lining or hardened steel extend service life. In a recent 2026 case study at a battery cathode plant, replacing standard 90-degree elbows with ceramic-lined sweep bends reduced annual maintenance downtime by 60%. The separation system at the discharge end—usually a cyclone followed by a bag filter or cartridge filter—must handle fine dust loading. Bag filters using PTFE membrane media achieve emissions below 1 mg/m³, complying with the most stringent environmental regulations. Automatic reverse pulse cleaning ensures continuous operation. headpowder integrates all these components into turnkey systems, backed by computational fluid dynamics (CFD) modeling to predict flow patterns and optimize pipe routing before installation.

Material Characterization: The Foundation of Successful Design

Before any system design begins, thorough characterization of the fine powder is mandatory. Key parameters include particle size distribution, bulk density, tapped density, moisture content, cohesion, angle of repose, and permeability. The Hausner ratio and Carr index help predict flowability. For example, a Hausner ratio above 1.4 indicates poor flow and likely cohesive behavior. The permeability test—measuring how easily air passes through a packed bed—determines whether dense phase conveying is feasible. Fine powders with permeability below 1×10⁻⁹ m² often require fluidization aids or vibrated conveying.

Additionally, attrition resistance must be assessed. In lithium-ion battery material production, even a 0.5% change in particle size distribution due to conveying can negatively affect electrode slurry viscosity. Industry standards such as ASTM D7481 and ISO 4324 provide testing protocols. We recommend sending a representative sample (minimum 5 kg) to a laboratory for a full powder characterization report. Modern 2026 instrumentation like the FT4 powder rheometer gives dynamic flow energy measurements that correlate closely with pneumatic conveying performance. By integrating these data into our proprietary design software, we can predict pressure drops within ±8% accuracy, reducing commissioning time.

Energy Efficiency and Sustainability Considerations

With rising energy costs and net-zero targets, optimizing pneumatic conveying systems for fine powders is a priority. Dilute phase systems typically consume 2–5 kWh per ton of material conveyed, while dense phase systems can reduce this to 0.5–1.5 kWh per ton. Variable frequency drives (VFDs) on blowers and rotary feeders allow precise control of air velocity, matching it to actual throughput. For example, a 2025 retrofit of a polymer powder line using VFDs achieved a 28% reduction in energy consumption while maintaining production rates.

Leakage detection and pipe insulation also contribute to sustainability. A 1 mm² hole in a pressure line can waste over 100 m³ of compressed air per week. Implementing an acoustic leak detection system pays back within six months. Furthermore, using inert gas such as nitrogen for conveying flammable fine powders (e.g., aluminum powder, sulfur) is a safety requirement, but recirculation systems can capture and reuse the nitrogen, cutting operating costs by up to 40%. Proper design also reduces waste: in a 2026 project for a pharmaceutical company, headpowder redesigned a conveying line that previously generated 3% product loss as dust; the new system reduced loss to below 0.3%, saving over USD 180,000 annually.

Common Operational Challenges and Practical Solutions

Even well-designed systems encounter issues. Blockages in the conveying line are the most frequent problem for fine powders. Common causes include sudden velocity drops, moisture condensation, or powder compaction at bends. Solutions include installing a bleed-air line at the feeder to keep the material aerated, using a pinch valve for line clearing without disassembly, and implementing a monitoring system with pressure transmitters at strategic points. If the pressure at a bend rises above a threshold, the system can automatically initiate a pulse of high-pressure air to dislodge the plug.

Static electricity buildup is another challenge, especially with low-moisture powders in plastic piping. Grounding the entire pipe network, including flexible hoses, is essential. Using conductive or anti-static pipe materials (e.g., stainless steel or carbon-filled polyethylene) further reduces the risk. In 2026, new standards like NFPA 77 provide updated guidance on bonding and grounding for combustible dusts.

Segregation of fine powders by size or density during conveying can affect product consistency. For instance, in a ceramic powder blend, the fine binder particles may separate from the coarse aggregate. To mitigate this, maintaining a uniform air velocity and avoiding long horizontal sections helps. Using a static mixer at the discharge or a fluidized hopper can reblend the material. For critical applications, online particle size analyzers using laser diffraction provide real-time feedback to adjust conveying parameters. We typically recommend a minimum straight pipe length of 20 diameters after the last bend before separation to allow re-suspension of segregated particles.

System Sizing and Selection: A Step-by-Step Approach

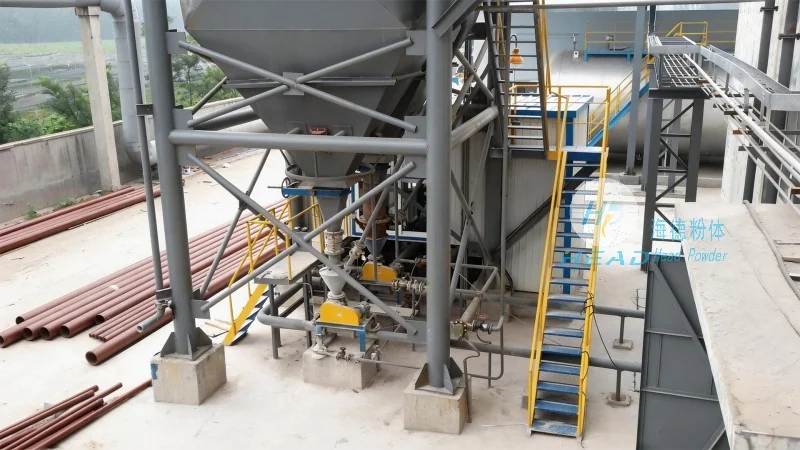

Selecting the right pneumatic conveying system for fine powders involves a methodical process. First, define the material throughput (tons per hour), conveying distance (horizontal, vertical, and total equivalent length), and number of destinations. Second, obtain powder characterization data. Third, choose the conveying regime based on the Geldart group and pressure budget. For Group C powders, a dense phase system with a blow tank is usually the most reliable. Fourth, size the pipeline diameter to maintain conveying velocity within the optimal range—typically 5–10 m/s for dense phase and 15–25 m/s for dilute phase of fine powders. A pipe diameter too small causes high velocity and wear; too large leads to saltation and blockages.

Fifth, calculate the total pressure drop using the Darcy-Weisbach equation modified for two-phase flow. Many online calculators are available, but we strongly advise using validated software that accounts for fines-specific factors like wall friction coefficient (which can be 2–5 times higher for cohesive powders). Sixth, select the blower or compressor capacity with a safety margin of 15–20%. Seventh, design the feeding device: for fine powders, a rotary valve with an adjustable clearance is preferred to minimize leakage. Finally, consider the control system: PLC-based automation with touchscreen interface allows easy adjustment of air flow, feed rate, and cleaning cycles.

For those unfamiliar with the calculation process, headpowder offers a free preliminary assessment using your data. We simulate the entire conveying path and provide a detailed system proposal. This service leverages our experience with over 500 fine powder installations worldwide, including in the pharmaceutical, chemical, and battery materials sectors.

Future Trends in Fine Powder Pneumatic Conveying (2026 and Beyond)

The industry is moving toward smarter, more sustainable systems. Real-time monitoring using IoT sensors—pressure, temperature, vibration, and flow rate—now enables predictive maintenance. Machine learning algorithms can detect early signs of blockages or equipment wear before they cause downtime. In a 2026 pilot project, condition-based maintenance reduced unplanned stops by 45%. Additionally, modular skid-mounted systems are gaining popularity for their fast installation and relocation ease, particularly in contract manufacturing facilities.

The use of hydrogen as a conveying gas is an emerging research area, driven by the need for ultra-clean environments in semiconductor-grade powders. However, safety considerations around hydrogen flammability require specialized materials and leak detection. Another trend is the integration of pneumatic conveying with additive manufacturing (3D printing) powder handling, where fine metal powders must be transported without oxygen exposure to prevent oxidation. Manufacturers are developing closed-loop systems with argon or nitrogen atmosphere control.

Finally, digital twins of pneumatic conveying lines are becoming accessible. By creating a virtual model that mirrors the physical system, operators can test different scenarios—changing powder batch, altering conveying route, or adjusting air velocity—without risking production. This technology, combined with powder rheology databases, will make system design faster and more accurate. headpowder is actively incorporating digital twin capabilities into its engineering workflow to reduce project delivery times by up to 30%.

Conclusion: Achieving Reliable Fine Powder Conveying Through Expert Design

Pneumatic conveying of fine powders is a complex but highly rewarding technology when correctly engineered. The interplay of particle properties, flow regime selection, component specification, and operational discipline determines whether a system runs smoothly for years or becomes a constant source of frustration. By prioritizing material characterization, adopting energy-efficient dense phase conveying where feasible, and leveraging modern monitoring tools, companies can achieve low operating costs, minimal product loss, and high equipment reliability. The case studies from 2025–2026 demonstrate that even small improvements—such as optimizing pipe bends or adding VFDs—yield substantial returns. As the demand for fine powders grows in advanced industries like electric vehicle batteries, specialty chemicals, and pharmaceuticals, having a robust pneumatic conveying solution is not just a competitive advantage but a necessity. If you are planning a new installation or struggling with an existing system, reach out to the specialists at headpowder (咨询热线：156-6277-7102) for a consultation. With decades of focused experience in fine powder handling, we can help you design a system that meets your throughput, quality, and budget goals while staying compliant with evolving safety and environmental standards.
