Customer Challenges in Sulfur Powder Handling

Many processing facilities face significant difficulties when conveying sulfur powder. Common issues include frequent pipeline blockages due to material agglomeration, dust explosion hazards caused by static electricity accumulation, equipment corrosion from sulfur's acidic nature, and inaccurate metering that leads to inconsistent product quality. These challenges not only compromise safety but also increase maintenance downtime and operational costs.

Material Characteristics of Sulfur Powder

Sulfur powder is a fine, combustible dust with a low ignition energy. It exhibits strong electrostatic charging during pneumatic transport, is prone to caking under moisture or pressure, and has a mildly corrosive effect on standard metal surfaces. The particle size distribution is typically in the range of 50 to 500 mesh, making it flowable under controlled conditions but difficult to handle in open or poorly sealed systems.

Customized Sulfur Powder Conveying Solution by Headpowder

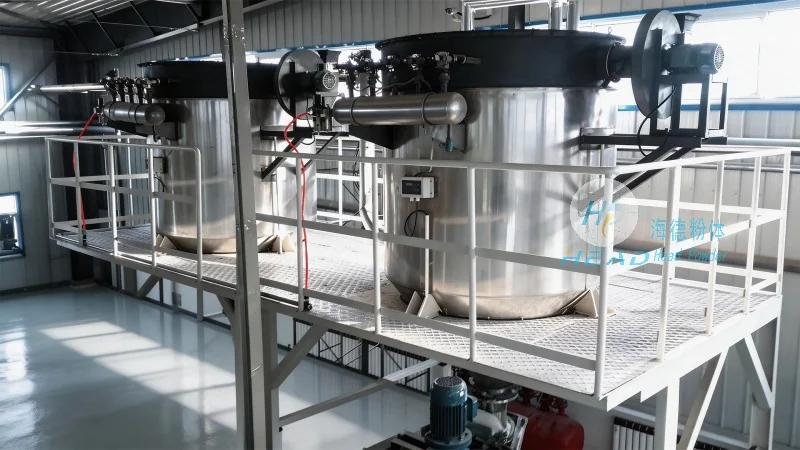

Headpowder offers a fully tailored pneumatic conveying system designed specifically for sulfur powder applications. Our solution integrates dense-phase or dilute-phase conveying modes, depending on the required throughput and distance. The system features explosion-proof components, inert gas blanketing (such as nitrogen) to eliminate oxidation and ignition risks, and corrosion-resistant piping made of stainless steel or lined alloys. A centralized PLC control unit provides real-time monitoring of pressure, flow rate, and material level, ensuring stable and repeatable operation.

Solution Advantages for Customer Pain Points

To address pipeline blockages, our conveying path is engineered with smooth bends and optimized air velocity to maintain uniform material flow. Anti-static grounding devices and grounding belts prevent electrostatic discharge. For corrosion issues, all contact surfaces are treated with specialized coatings or made from Hastelloy grade materials. Precise metering is achieved through weigh feeders or loss-in-weight systems integrated with the conveying line, offering accuracy within ±0.5%. Additionally, the sealed loop design contains dust and fumes, improving workplace safety and environmental compliance.
