Understanding the Challenges in Recycled Plastic Pellet Conveying

Recycled plastic pellets present distinct handling difficulties. Irregular shapes, residual dust, and varying moisture levels often cause blockages in conventional conveying lines. Operators frequently face material degradation, excessive dust emissions, and high energy consumption, which reduce overall process efficiency and increase maintenance costs.

Material Characteristics of Recycled Plastic Pellets

These pellets typically have a wide particle size distribution (1–5 mm), low bulk density (0.4–0.6 g/cm³), and contain fine powders from grinding processes. The material is prone to electrostatic buildup and can stick to pipe walls. Additionally, sharp edges on regrind pellets accelerate wear on standard conveying components.

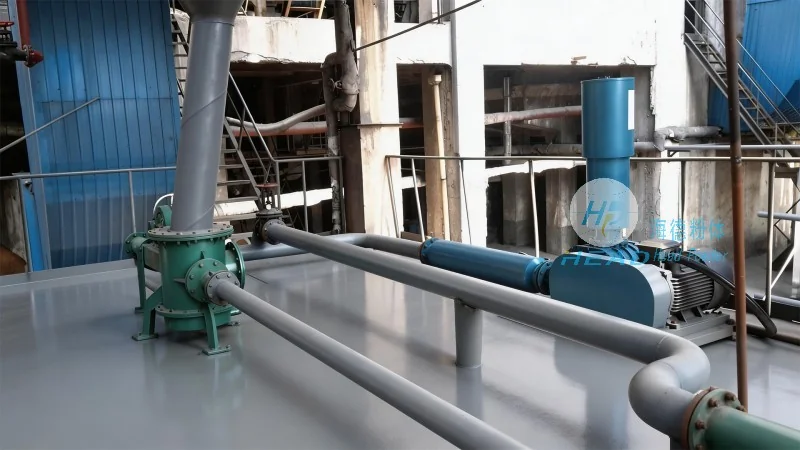

Headpowder Recycled Plastic Pellet Conveying System

Headpowder offers a fully customized pneumatic conveying solution engineered specifically for recycled plastic pellets. The system uses positive pressure dilute-phase or dense-phase transport, selected based on pellet geometry and conveying distance. Key components include wear-resistant pipe bends, anti-clog rotary valves, and a dust-tight filter receiver designed to handle dusty fines without fugitive emissions.

Tailored Advantages for Your Operation

Eliminates Dust and Contamination

The closed-loop conveying design prevents fine dust from escaping into the work environment, complying with stringent workplace safety standards while protecting product purity.

Minimizes Pellet Degradation

Optimized air velocity and low-impact material transition points reduce breakage and preserve pellet integrity, ensuring consistent downstream processing quality.

Energy-Smart Conveying

Variable frequency drives on blowers and intelligent control algorithms adjust airflow in real-time, reducing energy consumption by up to 30% compared to fixed-speed systems.

Reliable Anti-Bridge Operation

Specially designed intake hoppers with agitating mechanisms and smooth bore piping prevent material bridging and clogging, even with sticky or irregular pellets.
