Understanding the Challenges in PBT Pellet Conveying

Manufacturers handling PBT pellets frequently encounter issues such as material degradation, pipeline wear, dust generation, and blockages during pneumatic conveying. These problems lead to product quality inconsistency, increased maintenance costs, and reduced production efficiency. In addition, the hygroscopic nature of PBT pellets requires a sealed transport system to maintain moisture control, while the irregular particle shapes can cause bridging or sticking inside convey lines. Without a tailored solution, overall equipment effectiveness (OEE) suffers, and operational safety may be compromised.

Key Material Properties of PBT Pellets

PBT pellets are semi-crystalline engineering thermoplastics with a specific gravity typically ranging from 1.30 to 1.40 g/cm³. They exhibit moderate hardness, good dimensional stability, and low moisture absorption compared to nylon, but still require careful handling to prevent surface moisture pickup. The pellets have an average diameter of 2–4 mm, with a bulk density around 800–900 kg/m³. Their free-flowing nature is moderate; without proper conveying design, they tend to generate fine dust due to attrition when conveyed at high velocities, especially in dilute-phase systems. Understanding these characteristics is essential for selecting the appropriate pneumatic conveying method, whether dense-phase or dilute-phase, to minimize particle breakage and energy consumption.

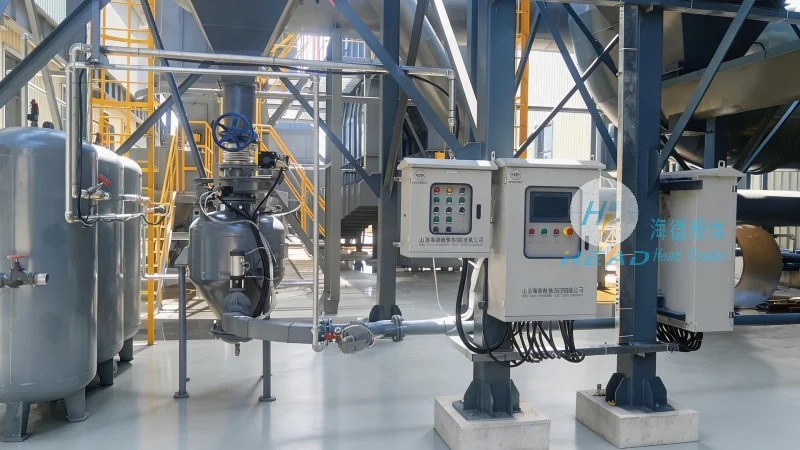

Our Custom Pneumatic Conveying Solution

Headpowder provides a fully customizable PBT pellet pneumatic conveying system designed to address the unique demands of plastic resin handling. Our equipment includes modular blow tanks, rotary valves, vacuum receivers, and automated control panels, all engineered to integrate seamlessly into existing production lines. We offer both pressure and vacuum conveying configurations, with options for closed-loop air recirculation to reduce moisture ingress. Each system is tailored based on throughput requirements, conveying distance, and plant layout. From single-source supply to turnkey installation, our solutions ensure reliable, dust-free, and gentle material transfer while maintaining pellet integrity.

System Advantages Tailored to Pain Points

To solve the common pain points faced by PBT pellet processors, Headpowder’s conveying system incorporates several targeted design features. The use of wear-resistant pipe bends and liners extends equipment life and reduces downtime from repairs. Optimized air velocity control prevents pellet degradation and dust generation, keeping product quality consistent. A dedicated dehumidification and filtration module maintains moisture control and prevents clogging, even in humid environments. Additionally, intelligent pressure monitoring and anti-blockage algorithms automatically adjust flow parameters, minimizing operator intervention and ensuring continuous, trouble-free operation. These innovations translate to lower total cost of ownership, higher yield, and safer working conditions.
