Shaanxi Xi'an Metal Powder Nitrogen Protection Project

HeadPowder, a professional provider of metal powder processing solutions, recently completed a nitrogen protection project for a metal powder production facility in Shaanxi, Xi'an. This project was designed to address specific operational challenges faced by the client in the handling and storage of reactive metal powders.

Project Background

The client, a metal powder manufacturer located in Xi'an, Shaanxi Province, specializes in the production of fine metal powders used in additive manufacturing and powder metallurgy. Their existing production line lacked adequate protection against oxidation and moisture, leading to quality variations in the final powder products.

Customer Pain Points

The client experienced several challenges in their daily operations. First, ambient air exposure during powder transportation and storage caused surface oxidation, reducing powder purity and affecting the mechanical properties of sintered parts. Second, uncontrolled humidity led to powder agglomeration, resulting in inconsistent flowability and packing density. Third, the absence of a reliable inert gas atmosphere increased the risk of dust explosion in the presence of fine aluminum or titanium powders. These issues not only lowered product yield but also required frequent manual intervention for quality rechecks.

Solution Provided by HeadPowder

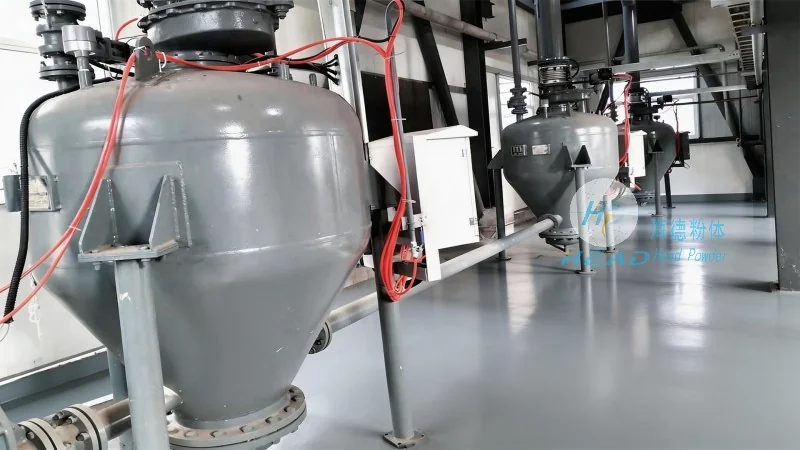

HeadPowder designed and implemented a comprehensive nitrogen protection system for the client's entire powder handling pipeline, from production to packaging. The system includes sealed pneumatic conveying lines, nitrogen-purged storage hoppers, and automated gas monitoring and control units. Nitrogen with a purity of 99.999% is continuously supplied to maintain an oxygen concentration below 0.5% in all critical zones. A centralized PLC controller adjusts nitrogen flow rates in real time based on sensor feedback, ensuring stable operation with minimal gas consumption. The solution effectively eliminates oxidation risks, improves powder flow stability, and enhances workplace safety.

Key Benefits Achieved

After the implementation of HeadPowder's nitrogen protection project, the client reported a significant reduction in powder oxidation rate, with oxygen-related defects decreasing by over 95%. Powder flowability improved by 30%, allowing more consistent feeding in additive manufacturing machines. The automated system reduced manual monitoring effort by 80%, and the risk of dust explosion was effectively mitigated through inert atmosphere control. Overall production yield increased by 12%, while nitrogen consumption was optimized to keep operating costs low.
