In the realm of industrial material handling, the efficient and reliable transportation of fine, lightweight, and abrasive powders presents a significant engineering challenge. This case study details a successful project executed by Shandong Headpowder Engineering Co., Ltd. (headpowder) for a leading building materials manufacturer located in Hohhot, Inner Mongolia. The primary objective was to design and implement a robust, low-energy, and dust-free conveying system for fly ash cenospheres, a valuable byproduct of coal combustion used extensively in the production of lightweight insulation materials.
The client, a well-established enterprise in the building materials sector, required a solution that could handle the unique physical properties of fly ash cenospheres—extremely low bulk density, high friability, and a tendency to generate static electricity. Traditional mechanical conveying methods, such as belt conveyors or bucket elevators, were deemed unsuitable due to high degradation rates, dust emissions, and maintenance costs. After a thorough evaluation of available technologies, the client selected headpowder's dense phase pneumatic conveying system, a proven approach for the gentle and efficient transport of fragile and abrasive powders over long distances. The project has since become a benchmark for fly ash cenosphere dense phase conveying in the region.
Fly ash cenospheres are hollow, lightweight microspheres primarily composed of silica and alumina. They are a key component in the production of high-performance insulation materials, lightweight concrete, and refractory products. The material's low density (typically 0.4–0.8 g/cm³) and high spherical shape make it ideal for thermal insulation applications, but also pose significant handling challenges. When conveyed using conventional dilute phase pneumatic systems, the high velocity can cause particle breakage, leading to degradation of the valuable cenospheres and increased dust generation. Moreover, the fine particles tend to agglomerate due to electrostatic forces, causing blockages in pipelines. The solution required a dense phase conveying system that operates at low velocities and high solids-to-air ratios, ensuring minimal particle damage and reliable flow. Shandong Headpowder Engineering Co., Ltd. has extensive experience in designing systems for such challenging materials, leveraging proprietary technology to maintain the integrity of the fly ash cenospheres while achieving high throughput rates.

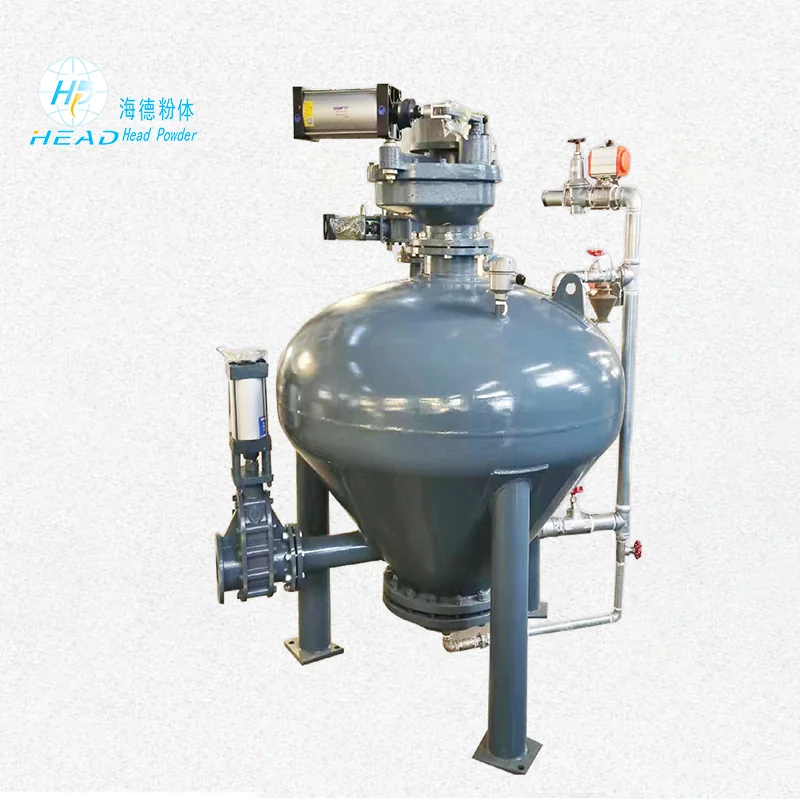

The installation at the Hohhot facility involved a complete turnkey system for the dense phase pneumatic conveying of fly ash cenospheres from storage silos to multiple downstream processing points, including mixing stations and packaging lines. The system was designed to handle a capacity of 10 tons per hour, with a conveying distance of 150 meters and a vertical lift of 20 meters. Given the abovementioned material characteristics, the design team at headpowder selected a top-discharge, pressure vessel-based dense phase system. This approach uses compressed air to fluidize and push the material in a slug or plug flow pattern through the pipeline, significantly reducing air velocity and associated wear. The system also incorporates a specialized air venturi at the vessel outlet to ensure smooth initiation of flow. The pipeline was constructed from wear-resistant steel with a smooth interior surface to minimize friction and prevent material buildup. Additionally, a dedicated dehumidification unit was installed to control moisture content, which is critical for preventing caking of the fly ash cenospheres. The whole system is fully enclosed, eliminating any dust leakage and meeting the strictest environmental regulations in Inner Mongolia.
One of the key technical highlights of this project is the integration of headpowder's intelligent control system, which automatically adjusts the conveying parameters based on real-time feedback from pressure sensors and flow meters. This ensures optimal performance even when the bulk density of the fly ash cenospheres varies due to changes in the source material. The dense phase system consumes significantly less air compared to dilute phase systems, resulting in lower energy consumption and reduced operating costs. In fact, the specific power consumption of this installation is approximately 0.02 kWh per ton-meter, which is among the best in the industry for such lightweight materials. Furthermore, the gentle handling nature of dense phase conveying means that the cenospheres retain their shape and size distribution, preserving their performance as an insulation material additive. The system also features a modular design, allowing for easy future expansion or modification. All these advantages make the Hohhot case a textbook example of best practices in fly ash cenosphere dense phase conveying, and it has been widely cited in the industry as a reference for similar projects.
Since the system was commissioned in early 2023, it has operated continuously with over 99% uptime, processing more than 50,000 tons of fly ash cenospheres without any major maintenance issues. The client reported a 30% reduction in material loss compared to their previous mechanical handling system, and a 40% decrease in dust emissions. The plant's insulation material production line saw a significant improvement in product consistency, as the uniform supply of cenospheres eliminated batch-to-batch variations. The facility manager emphasized that the system's low noise level (below 75 dB) and minimal operator intervention were major benefits. The entire project was completed within the agreed timeline of 6 months, including design, fabrication, installation, and commissioning. The success of this project has led to a follow-up order for a second line at the same plant, as well as inquiries from other building materials enterprises in the region. For any potential clients seeking a reliable partner for their pneumatic dense phase conveying needs, the Hohhot case stands as a testament to the capabilities of Shandong Headpowder Engineering Co., Ltd.
Shandong Headpowder Engineering Co., Ltd., headquartered in Shandong, China, has been a leading provider of pneumatic conveying systems for over 15 years. The company specializes in the design and manufacturing of dense phase conveying systems for a wide range of powders, including fly ash cenospheres, cement, lime, silica fume, and various chemical additives. With a dedicated team of experienced engineers and a state-of-the-art testing facility, headpowder can simulate and optimize conveying parameters before the system is built. This ensures that every project, whether it is for a small-scale pilot plant or a large industrial complex, is tailored to the specific material properties and operational requirements. The company's commitment to quality is reflected in its ISO 9001 certification and the use of premium components from global suppliers. For more information about the Hohhot case or to discuss your own material handling challenges, you can reach out to the project manager, Mr. Zhang, who was directly involved in this installation. Mr. Zhang is available to answer technical questions and provide detailed references. His contact WeChat is 15662777102. Shandong Headpowder Engineering Co., Ltd. looks forward to helping you achieve efficient, reliable, and environmentally friendly powder conveying solutions.
This case study clearly demonstrates that dense phase pneumatic conveying is the optimal solution for handling fly ash cenospheres in the building materials industry. The combination of low operating costs, high material preservation, and dust-free operation makes it a superior alternative to both mechanical conveyors and dilute phase systems. The Hohhot project not only solved the client's immediate production bottlenecks but also improved their overall product quality and environmental footprint. The expertise of Shandong Headpowder Engineering Co., Ltd. in designing and implementing such systems was pivotal to the success. As the demand for lightweight insulation materials grows, driven by global energy efficiency initiatives, the importance of reliable and efficient conveying systems for cenospheres will only increase. If you are looking for a proven solution for your own fly ash cenosphere dense phase conveying project, do not hesitate to contact Mr. Zhang via WeChat at 15662777102. He can provide a comprehensive consultation and reference to the Hohhot installation. Shandong Headpowder Engineering Co., Ltd. is your trusted partner in pneumatic conveying innovation.
