In pharmaceutical manufacturing, handling Activated Carbon (Pharma Grade) presents unique challenges due to its fine particle size, high purity requirements, and tendency to generate dust. Without a properly designed conveying system, these characteristics can lead to product contamination, material loss, operator exposure, and operational inefficiencies. Headpowder addresses these challenges with a customized pneumatic conveying solution engineered specifically for Activated Carbon (Pharma Grade).

Customer Pain Points

Pharmaceutical producers often struggle with dust generation during activated carbon transfer, which compromises cleanroom environments and poses cross-contamination risks. Material buildup in conveying lines reduces throughput and requires frequent maintenance. Inconsistent flow behavior due to the material's cohesive nature leads to stoppages and batch variability. Additionally, conventional pneumatic systems can cause particle attrition, degrading the activated carbon's adsorptive properties and affecting final product quality.

Material Characteristics

Activated Carbon (Pharma Grade) is a fine, porous powder with a high surface area, typically in the range of 500–1500 m²/g. It is hygroscopic, prone to electrostatic charge, and has poor flowability due to its irregular particle shape and low bulk density (often 0.3–0.6 g/cm³). The material is chemically stable but can adsorb moisture and volatile compounds from the environment, requiring sealed, inert handling conditions. Its abrasive nature also demands wear-resistant conveying components.

Product Introduction

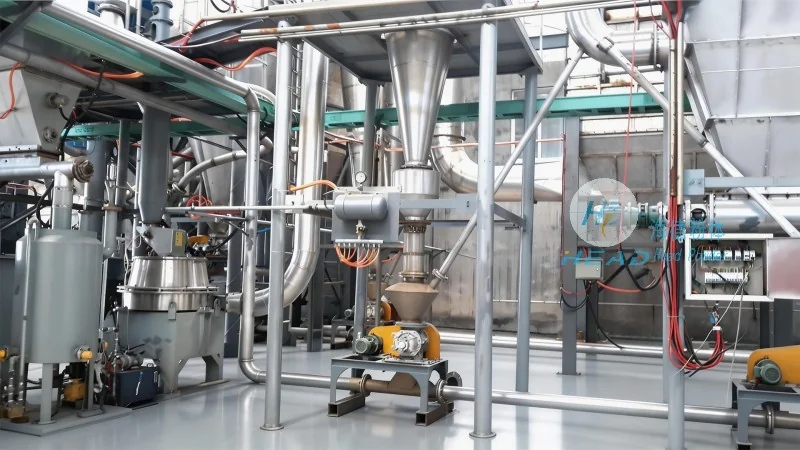

Headpowder provides a complete range of customized pneumatic conveying systems for Activated Carbon (Pharma Grade), including dilute phase, dense phase, and vacuum-driven solutions. Each system is designed with strict adherence to pharmaceutical manufacturing standards, ensuring product integrity, operator safety, and process repeatability. Our solutions integrate seamlessly with upstream and downstream equipment, from bulk bag unloaders to blending vessels and tablet presses.

Product Advantages

Our systems directly address key pain points through: (1) Fully enclosed conveying to eliminate dust emissions and prevent cross-contamination; (2) Low-velocity dense phase technology that minimizes particle breakage and preserves activated carbon's performance; (3) Clean-in-place (CIP) and steam-in-place (SIP) capabilities for easy cleaning between batches; (4) Material-friendly line routing with anti-static and wear-resistant linings to handle abrasive and electrostatic behavior; (5) Automated controls with real-time monitoring of pressure, mass flow, and product temperature for consistent operation; (6) Customizable discharge points and multiple feed configurations to fit varying facility layouts.
