Understanding the Challenge: Customer Pain Points in Grain Pellet Conveying

In grain processing facilities, traditional mechanical conveying methods—such as bucket elevators or screw conveyors—often lead to significant product degradation, high dust emissions, and frequent maintenance downtime. Operators struggle with inconsistent material flow, equipment wear caused by abrasive particles, and the risk of cross-contamination. The need for a reliable, gentle, and dust-free conveying solution has never been more critical.

Material Characteristics of Grain Pellets

Grain pellets, including corn, wheat, soybean, and rice, typically have a bulk density ranging from 0.6 to 0.8 t/m³ and a particle size between 2 and 8 mm. These materials are friable, meaning they can break easily under impact or shear forces. Additionally, grain pellets generate fine dust during handling, which poses both safety hazards (explosion risk) and environmental concerns. Free-flowing but prone to bridging when moisture content is high, grain pellets require a conveying method that minimizes mechanical stress while maintaining high throughput.

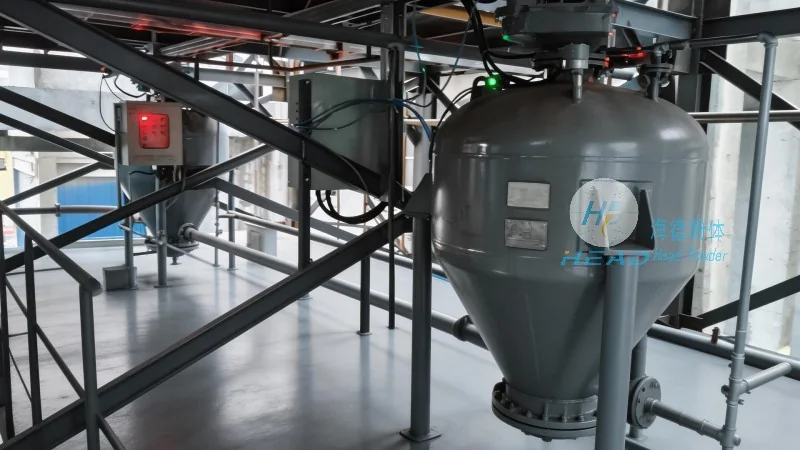

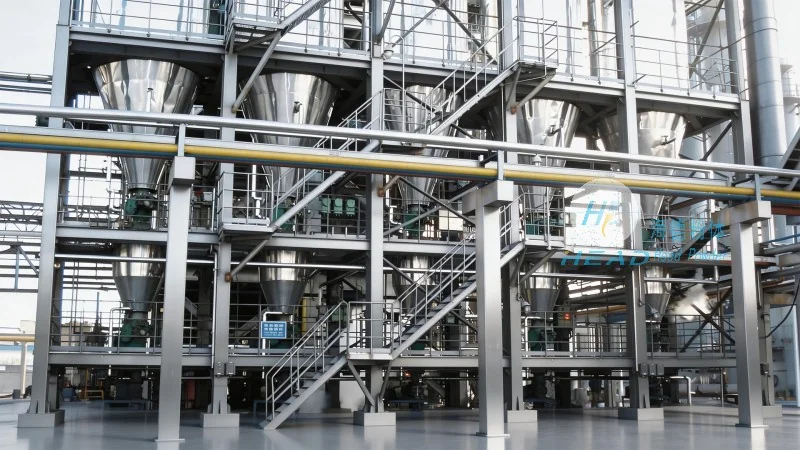

HeadPowder Customized Pneumatic Conveying Solution

HeadPowder offers a fully customizable grain pellet pneumatic conveying system designed to address the specific challenges of dry bulk solids handling. Our system utilizes either dilute-phase or dense-phase pneumatic transport, depending on your material properties and distance requirements. The closed-loop pipeline design eliminates dust leakage, reduces product breakage, and requires minimal manual intervention. Each solution is engineered to match your facility layout, capacity demands, and existing control infrastructure.

Key Advantages of the HeadPowder Solution

Compared to traditional conveyors, our pneumatic system delivers measurable benefits that directly target customer pain points:

Reduced Product Degradation: By controlling air velocity and using gentle acceleration zones, the system keeps grain pellet breakage below 1% in most applications, preserving product quality and market value.

Dust-Free Operation: Fully sealed pipelines and integrated filtration units contain all fine particles, improving workplace safety and meeting strict environmental regulations.

Energy Efficiency: Optimized air-to-material ratios and variable frequency drives on blowers reduce power consumption by up to 20% compared to conventional pneumatic systems.

Low Maintenance & High Reliability: With no moving parts inside the pipeline, wear is concentrated on easily replaceable components such as diverters and receiver filters, minimizing unscheduled downtime.

Scalable and Flexible: Whether you need to convey grain pellets over 10 meters or 200 meters, our modular design allows easy expansion and integration with existing process equipment.
