Hunan Changsha Food Powder Auto-Feeding Conveying Case

Headpowder successfully delivered a tailored auto-feeding conveying solution for a food powder processing facility in Changsha, Hunan. The system integrates screw conveyor, pneumatic transfer, and automated control to handle a variety of powdered ingredients such as chili powder, star anise powder, and rice flour.

Case Overview

A well-known seasoning manufacturer in Changsha required an efficient, hygienic, and dust-free method to transfer multiple food powders from storage to mixing stations manually. The existing process relied on bucket lifts and manual dumping, leading to inconsistent feed rates, airborne dust, and frequent operator intervention.

Customer Pain Points

1. Inconsistent feeding accuracy – Manual scooping and pouring caused batch-to-batch variations in ingredient ratios, directly affecting product taste and quality control.
2. Dust emission contamination – Fine food powders generated visible dust clouds during handling, risking respiratory safety and requiring frequent cleaning of production floors.
3. Labor-intensive operation – Operators needed to lift heavy bags repeatedly, leading to fatigue and reduced productivity during peak production hours.
4. Limited scalability – The existing system could not easily adapt to different powder types with varying flowability and particle sizes.

Product Advantage – Headpowder Solution

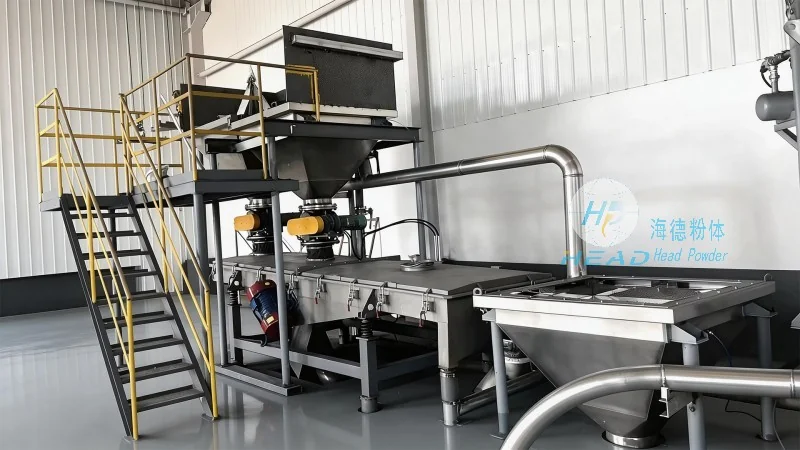

Headpowder designed and installed a closed-loop auto-feeding conveying system that addresses each pain point:

• Precision feeding control – A weigh-belt feeder combined with a variable frequency drive ensures each ingredient is dispensed within a tolerance of ±0.5%, eliminating batch inconsistency.
• Dust-tight enclosure – The entire conveying line (from hopper to discharge point) is sealed with gaskets and equipped with a localized vacuum extraction system, reducing airborne particulate to below regulatory limits.
• Automated cycle – PLC-based control sequences material feeding without manual intervention; operators only need to refill the bulk hopper every 4 hours, cutting labor hours by 60%.
• Flexible material handling – The system handles powders with bulk densities from 0.3–0.9 g/cm³ and particle sizes up to 2 mm, supporting multiple recipes with quick changeover.

The result is a safer, cleaner, and more consistent powder feeding process that meets GMP standards for food production. Headpowder continues to provide remote monitoring and preventive maintenance to ensure long-term reliability.
