Understanding the Challenge: Customer Pain Points

Many manufacturers handling silica gel pellets face recurring difficulties with conventional conveying methods. Mechanical conveyors often cause pellet breakage, generate fine dust, and lead to blockages, resulting in frequent downtime and high maintenance costs. Additionally, standard pneumatic systems may not accommodate the delicate nature of silica gel, leading to moisture absorption during transfer, inconsistent flow, and product quality degradation. The lack of customization forces operators to compromise on efficiency or risk damaging expensive materials.

Material Characteristics of Silica Gel Pellets

Silica gel pellets are porous, highly hygroscopic, and mechanically fragile. They typically have a narrow particle size distribution (e.g., 2–5 mm) and moderate flowability. The material is sensitive to impact, abrasion, and humidity, meaning any conveying solution must minimize collision forces, prevent dust generation, and maintain a sealed environment to avoid moisture pickup. Temperature stability is also a concern, as excessive heat can alter adsorption properties.

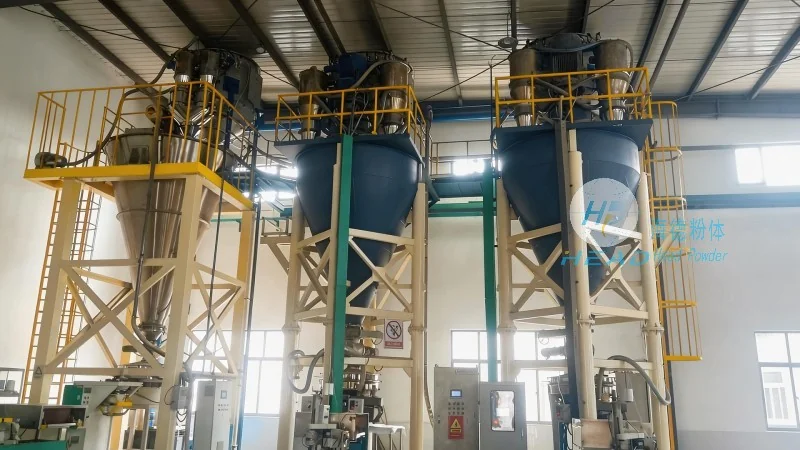

Product Overview: Customized Silica Gel Pellet Pneumatic Conveying System

Headpowder offers a fully customizable pneumatic conveying solution specifically engineered for silica gel pellets. Our systems utilize either dilute-phase or dense-phase conveying, selected based on your material characteristics, distance, and capacity requirements. Each system integrates a purpose-designed feeder, pipeline layout, receiving hopper, and automated control unit. The equipment is built with smooth interior surfaces, gentle bends, and optimized air-to-material ratios to preserve pellet integrity. Sealed connections and moisture-resistant components prevent unwanted adsorption during transfer, while intelligent PLC-based controls ensure consistent, repeatable operation.

Solution Advantages: Addressing Core Pain Points

Our customized approach directly resolves the common issues faced with silica gel pellet handling. By adjusting conveying velocity and line configuration, we reduce pellet breakage to under 0.5% in typical operations. The enclosed system eliminates moisture ingress, maintaining product activity from feed to destination. Low-energy dense-phase options cut power consumption by up to 30% compared to traditional dilute-phase systems. Furthermore, the modular design simplifies integration with existing equipment, and the minimal moving parts significantly lower maintenance frequency. Each solution is validated through material testing and simulation before installation, ensuring reliable performance from day one.
